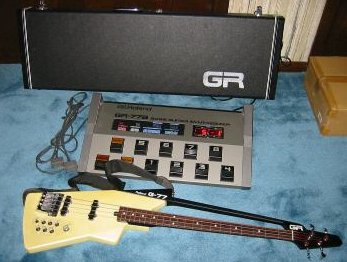

THE ROLAND G-77 BASS  GUITAR WITH gr-77B SYNTHESIZER
I've been a longtime fan of the Roland synth guitars, so when an old G-77 Bass system -- 1985 guitar controller and floor synth -- appeared for a great price on e-Bay, this 20-year-old vintage synthesizer system was a "must have." This seemed to make a lot of sense since I had only one bass -- a Hofner Beatle Bass -- and I was reluctant to take it on the road. Over the decades the various 3rd members of our trio often played bass: Barry Forman (Yamaha), Kevin Pahl (numerous keyboard basses), Kerry Morris (Fender), son Robin (Fender). . . and Sue-On, when not playing drums, played a series of keyboard basses (see below: Hohner, Fender, Moog, Roland). We've used it numerous times without the synth floor module at our weekly Cantina jam sessions. It plays well.
.


PHOTO GALLERY & SPECS
For more info on the G-77
see our History of Roland Synths Site at
http://www.hillmanweb.com/guitsyn.html

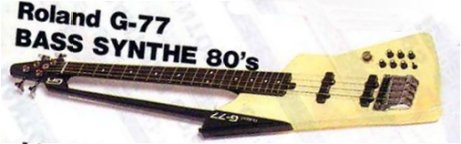

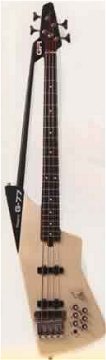

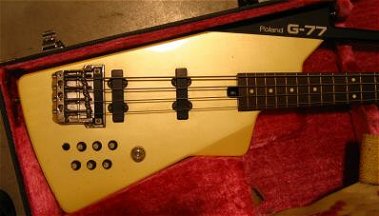

The G-77 is the bass equivalent of the G707 guitar.
It also has a stabilizer bar and
originally came in Silver, Black, or Cream.
Body: Ash or Alder
Finish: Acrylic (natural)
Neck: Maple
Fingerboard: Rosewood
Frets: 21
Bridge: Adjustable
Nut: Polycarbonate
Tuning Machines: Gotoh
Pickups: Two single-coils
Scale: 34”
Truss Rod: Single, adjustable
Neck Width: 1 5/8 ”
Body Width: 9 ”
Body Depth: 1 3/4 ”
Overall Length: 46 ”
Weight: 9 lbs

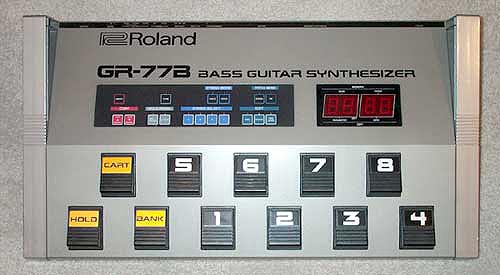

The GR-77B is a fully analog 4 voice polyphonic synthesizer and
shares the same internal electronics as the Roland JX-8P keyboard.
The synth can store 64 sounds internally (in 8 banks of 8).
Another 32 sounds can be stored and retrieved externally in proprietary Roland PC-16M memory cartridges.

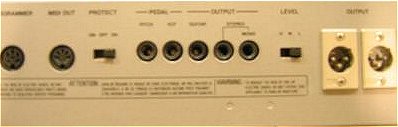

The inputs on the back of the unit are as follows (from left to right):
POWER - Power Switch (top)
AC INLET - Power Cord (bottom)
MEMORY CARTRIDGE - M-16C Memory card holder
GUITAR INPUT - Guitar/Bass input connector
PROGRAMMER - PG-800 programmer connector
MIDI OUT - MIDI OUT connector
MEMORY PROTECT - Memory protect switch
PITCH - Pitch control jack (optional external pedal)
VCF - VCF control jack
GUITAR OUT - Guitar/Bass magnetic pickup output jack
OUTPUT - Line out jacks
LEVEL - Level selector switch
OUTPUT (2) - XLR output connectors

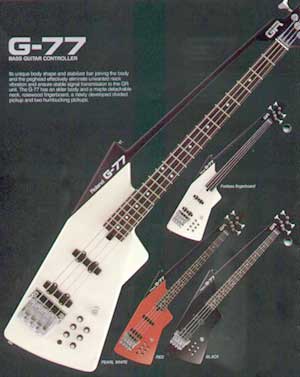

Brochure
Related Links:
Free Music Study site with guitar chord charts
     www.freemusicstudy.com/basic-guitar-chord-chart.htm
     www.freemusicstudy.com/guitar.htm
Free Guitar Lessons at Mad Guitar Licks!
1000 Great Guitar Sites
BluesLessons.com
BluesQuest.com
Edirol Corporation (Roland Multi-media)
Essential Guitar Guide ~ Practical Music Theory
Fender Guitars
Fender Set-up Guides
Fingerstyle Guitar Magazine
G77 Bass Electronics
Gibson Musical Instruments
GR-300
Guitar Digest - For Players and Collectors
Guitar dot Com: Your Guitar Guide
Guitar dot Net
Guitar Links: Building ~ Wiring ~ MIDI ~ Electronics ~ FAQs
Guitar Magazine
Guitar Notes
Guitar Skins by Axewrap
Guitar Tricks
Guitar World Magazine
Mark's MultiMedia Studio: Guitar Lessons
Martin Guitars
Midi Guitar List
Online Rock
Peavey World
Premiere Guitar
Production Music
Roland Groove Products
Roland Guitar Synth Resources
Roland Specs & FAQs
Roland US
Royalty Free Music
Synth Museum
Tablature: Links to 100 Top Sites
Vintage Gear
Vintage Guitar Magazine
Yamaha Guitars
RECOMMENDED REFERENCE PAGE


For more info on the G-77
see our History of Roland Synths Site at
 http://www.hillmanweb.com/guitsyn.html
.
Sue-On's
ROLAND DIGITAL DRUMS
(Released in the mid '80s)

DDR-30 DEMO
In the '80s and '90s we were some of Roland's best customers. We had worked as a trio for most of our gigs through the years so it seemed natural to beef up our sound a bit with synthesizers. I turned to a Roland G-707 synthesizer guitar and Sue-On added a stack of Roland synth keyboards for the right hand plus a small Moog for the bass sounds from her left hand. Since she doubled on drums it seemed natural to augment her drum kit with the Roland DDR-30 digital drums module with pads for bass, toms and snare. Unhappy with the feel of the digital snare drum pad she soon replaced it with her acoustic Ludwig snare (miked). We also programmed a series of digital drum machines for backing in the events that we played as a duo. Eventually we tired of all the progamming and digital sounds and gradually returned to our original pre-synth instrument line-up.

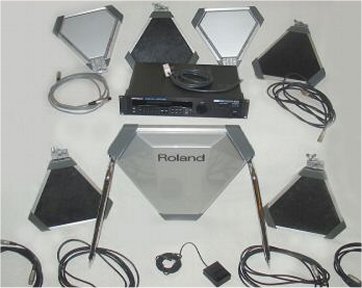

DDR-30 specs: "The Roland digital drums system consists of the DDR-30 digital drums module and two kinds of dynamic pads. Basic sounds of the DDR30 are PCM recorded bass, snare and 4 toms (each with 4 different PCM digital sounds). Up to 8 kinds of modified preset sounds per voice can be stored in internal memory and 64 more on ram cartridge. Midi in, out and through connectors are provided as well as individual and mix outputs.

"The DDR30 is incredibly versatile, the samples are a great blend of purely acoustic and electronic (there is an electronic kick that can be modified to be anything from a cheesy simmons thing to a deep 808). It’s also great for recording percussion, hook up a pad (in fact a microphone will do) and beat the hell out of it. Record the MIDI out in to your sequencer and admire your work! It beats the hell out of trying to do fills tapping those little crappy buttons on a drum machine, or a keyboard."

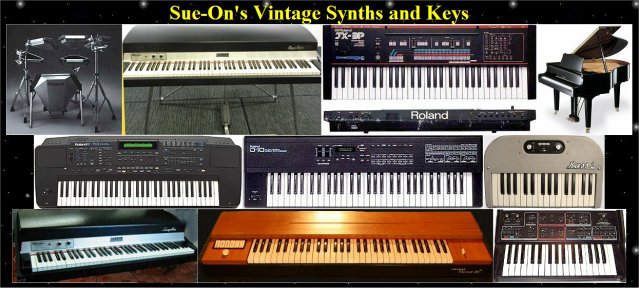

Sue-On's Keys
What are now considered
Vintage Keyboards

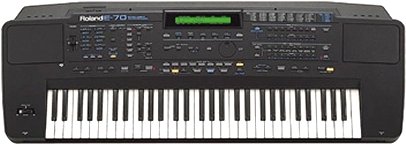

Roland E-70

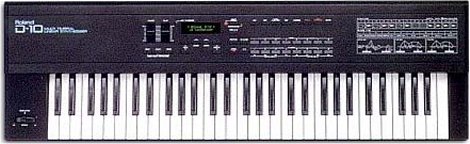

Roland D-10

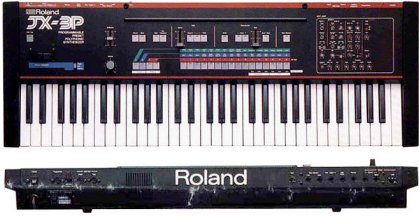

Roland JX-3P

Sue-On's Keys
Before the Synths

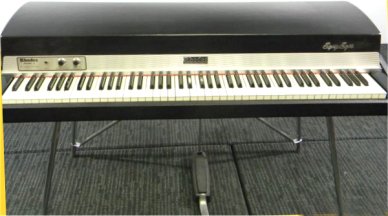

Fender Rhodes 88

(Keyboard later split - Left hand through bass amp - Right through Peavey & PA)

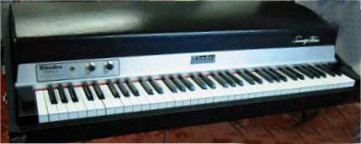

Fender Rhodes 73

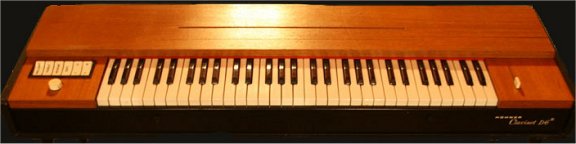

Hohner Clavinet

Hohner  Bass 2  |  Moog MG-1
Used as Keyboard Basses

Yamaha Grand
